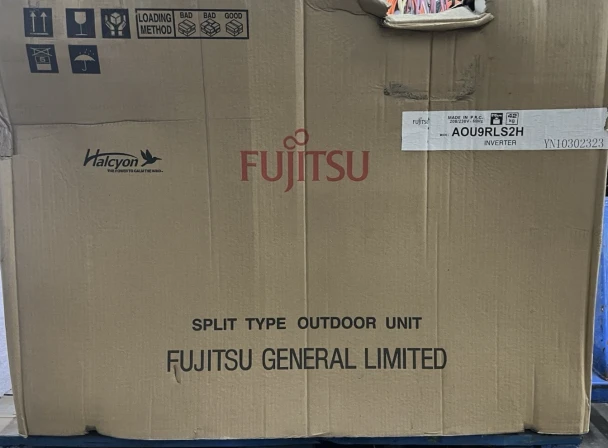

Fujitsu AOU9RLS2H 12K BTU Outdoor Heat Pump Condenser. Brand New OB! WE SHIP

This is an old model warehouse liquidation. These units are new unused however a old stock year model not a current year model. This will work great for someone with the right indoor unit or if your outdoor compressor needs replacement.

The Fujitsu AOU12RLS2H is a premium, 12,000 BTU (1-ton) single-zone outdoor inverter heat pump condenser from Fujitsu's specialized Halcyon XLTH (Extra Low Temperature Heating) sub-generation. The crucial "H" suffix dictates that this model features integrated factory additions for sub-zero climates.
NEW UNITS 2 AVAILABLE
Cold-Climate XLTH Engineering
Unlike the standard RLS2 series, the RLS2H version was custom-modified for northern climates:

* 100% Heating Capacity: It is engineered to deliver 100% of its rated heating output at outdoor temperatures down to -15°F (-26°C).
* Base Pan Heater: Features a factory-installed heater element in the bottom pan to prevent condensate drainage from freezing, cracking the fan blade, or locking up the outdoor coil.
* Defrost Logic: Utilizes a specialized low-ambient defrost control board and relay interface to manage severe frost accumulation.

Core Technical Specifications

* Capacity: 12,000 BTU/hr nominal cooling / 16,000 BTU/hr nominal heating.
* Electrical: Operates on standard 208/230V, 1-phase, 60Hz power. It has a recommended minimum circuit ampacity (MCA) of 10.9-12.0 Amps.
* Efficiency: Ultra-high efficiency tier with a legacy rating of 25 SEER and an 11.9 HSPF. It was historically eligible for regional utility rebates and federal energy tax credits.
* Piping Layout: Requires a 1/4" liquid line and a 3/8" gas line using flare connections. Maximum piping length is 66 feet, with a maximum vertical height separation of 49 feet.

Indoor Unit Companion
The designated matching indoor air-handling unit for this condenser is the ASU12RLS2 high-wall head. If you are sourcing components, the matching original factory remote controller is model AR-RCE2E.
WE SHIP INTERNATIONAL
